Agastat Relays / TE Connectivity

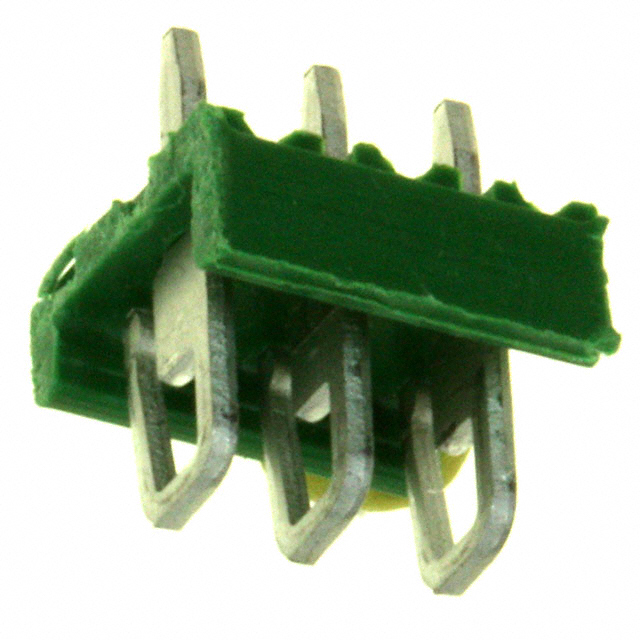

| Part Number | 5164713-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3POS VERT 2.5MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 263494 pcs | Data sheet | 5164713-3.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | Mini-Match | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | 0.358" (9.09mm) | Other Names | A36388 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.118" (3.00mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | - | Fastening Type | - |
| Detailed Description | Connector Header Through Hole 3 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
