5149012-1

Agastat Relays / TE Connectivity

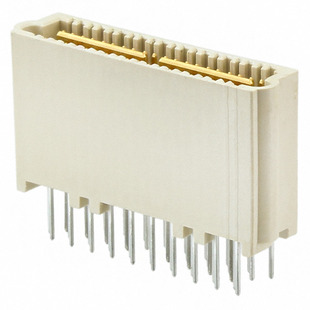

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5149012-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PLUG 40POS VERT 30GOLD PCB
Datasheets:	5149012-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4094 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4094 pcs

Reference Price (In US Dollars)

1 pcs: $8.644

19 pcs: $7.804

114 pcs: $6.776

513 pcs: $6.215

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.644

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5149012-1

Part Number	5149012-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PLUG 40POS VERT 30GOLD PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4094 pcs	Data sheet	5149012-1.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	Micro-Strip	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	5149012-1-ND 51490121 A110817
Operating Temperature	-65°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	18.75mm
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.648" (16.46mm)
Insulation Color	Natural	Ingress Protection	-
Features	Ground Bus (Plane)	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 40 position 0.050" (1.27mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.185" (4.70mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Plug
Applications	-
