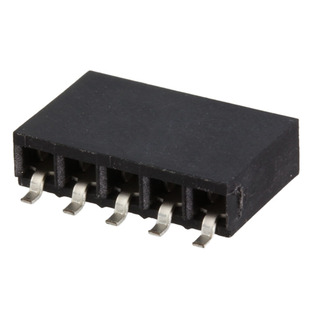

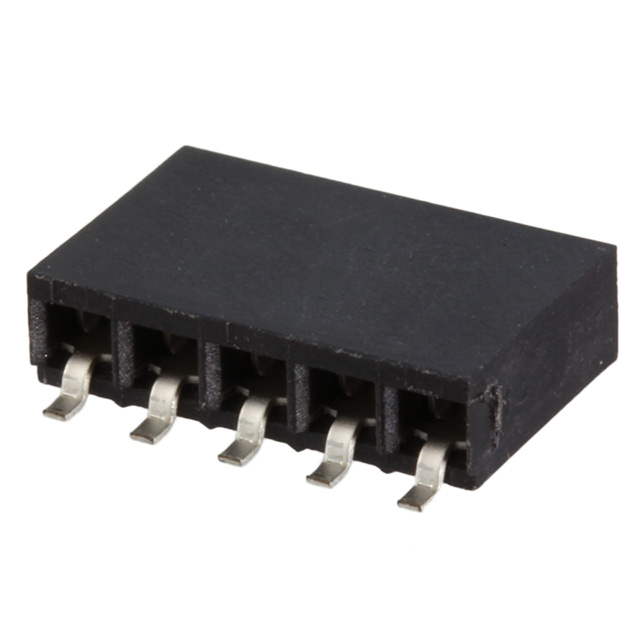

Agastat Relays / TE Connectivity
| Part Number | 5147733-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 05 MODII HORZ SR SFMNT SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 135177 pcs | Data sheet | 5147733-4.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Other Names | A111251CT |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.137" (3.47mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 5 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Tin | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
