Agastat Relays / TE Connectivity
| Part Number | 5146140-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 10 MODII HORZ DR CE 100CL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75623 pcs | Data sheet | 5146140-4.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | - | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.238" (6.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |

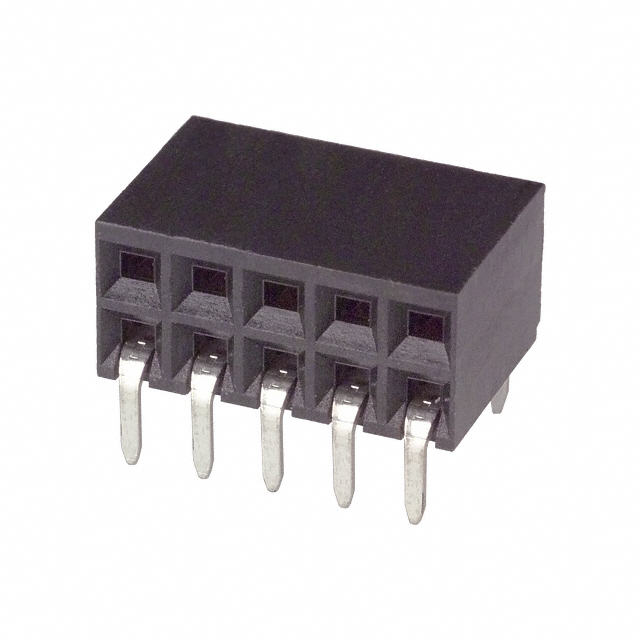

| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
