5-520314-6

Agastat Relays / TE Connectivity

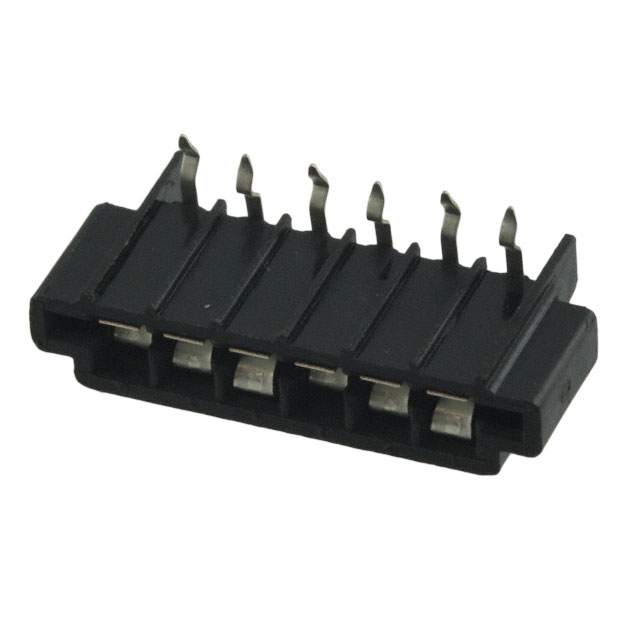

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-520314-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN FFC FPC TOP 6POS 2.54MM R/A
Datasheets:	5-520314-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	93780 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 93780 pcs

Reference Price (In US Dollars)

1 pcs: $0.336

10 pcs: $0.294

25 pcs: $0.277

50 pcs: $0.265

100 pcs: $0.254

250 pcs: $0.231

500 pcs: $0.208

1000 pcs: $0.185

2500 pcs: $0.167

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.336

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-520314-6

Part Number	5-520314-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN FFC FPC TOP 6POS 2.54MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	93780 pcs	Data sheet	5-520314-6.pdf
Voltage Rating	250V	Termination	Kinked Pin
Series	Triomate	Pitch	0.100" (2.54mm)
Packaging	Bulk	Other Names	5-520314-6-ND 55203146 A124427
Operating Temperature	-55°C ~ 105°C	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	25	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	18 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyester Thermoplastic, Glass Filled
Housing Color	Black	Height Above Board	0.190" (4.83mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.13mm ~ 0.38mm	Detailed Description	6 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
