5-147746-8

Agastat Relays / TE Connectivity

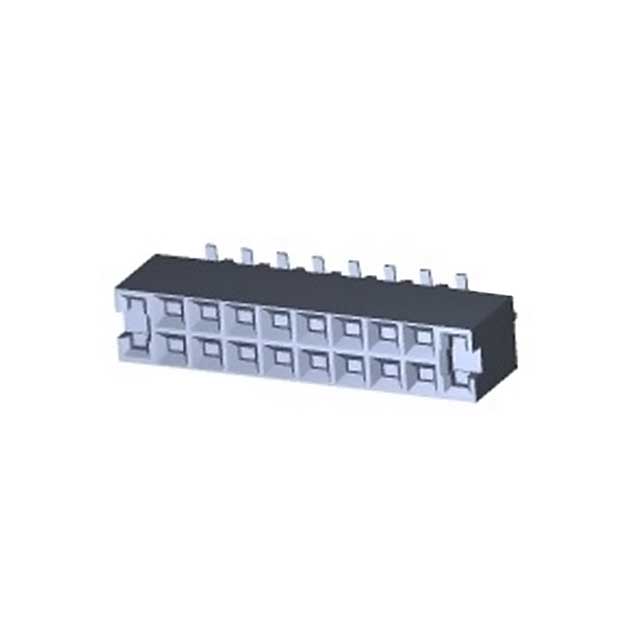

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-147746-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	16 MODIV VRT DR SFMNT 10AU
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48121 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 48121 pcs

Reference Price (In US Dollars)

1500 pcs: $0.64

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.64

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-147746-8

Part Number	5-147746-8	Manufacturer	Agastat Relays / TE Connectivity
Description	16 MODIV VRT DR SFMNT 10AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48121 pcs	Data sheet
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Series	AMPMODU Mod IV
Row Spacing - Mating	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tape & Reel (TR)	Operating Temperature	-65°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	16	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.265" (6.73mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock, Pick and Place
Fastening Type	Push-Pull	Detailed Description	16 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Current Rating	2A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle, Bottom or Top Entry
Applications	-
