5-147424-5

Agastat Relays / TE Connectivity

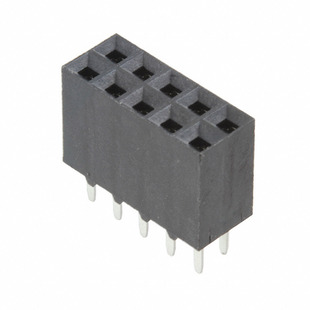

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-147424-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	10 MODII VRT DR CE .100 X .100
Datasheets:	5-147424-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54241 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54241 pcs

Reference Price (In US Dollars)

1 pcs: $0.683

45 pcs: $0.582

135 pcs: $0.531

540 pcs: $0.443

1035 pcs: $0.379

5040 pcs: $0.336

10035 pcs: $0.329

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.683

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-147424-5

Part Number	5-147424-5	Manufacturer	Agastat Relays / TE Connectivity
Description	10 MODII VRT DR CE .100 X .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54241 pcs	Data sheet	5-147424-5.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Series	AMPMODU Mod IV
Row Spacing - Mating	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	5-147424-5-ND A115299
Operating Temperature	-65°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.320" (8.13mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold	Current Rating	2A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.115" (2.92mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	-
