5-147384-1

Agastat Relays / TE Connectivity

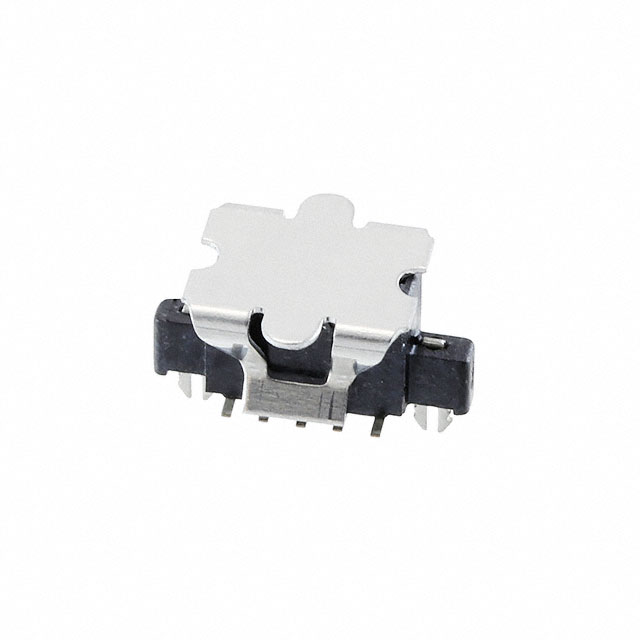

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-147384-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RCPT 10POS VERT .050 SMD
Datasheets:	5-147384-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17305 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17305 pcs

Reference Price (In US Dollars)

1 pcs: $1.698

10 pcs: $1.631

100 pcs: $1.359

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.698

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-147384-1

Part Number	5-147384-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RCPT 10POS VERT .050 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17305 pcs	Data sheet	5-147384-1.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board or Cable	Series	AMPMODU 50/50 Grid
Row Spacing - Mating	0.050" (1.27mm)	Pitch - Mating	0.050" (1.27mm)
Packaging	Cut Tape (CT)	Other Names	A118911CT
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	6.35mm, 8.13mm, 9.91mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.187" (4.75mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock, Pick and Place
Fastening Type	Push-Pull	Detailed Description	10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Current Rating	0.5A per Contact	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	-
