5-146868-1

Agastat Relays / TE Connectivity

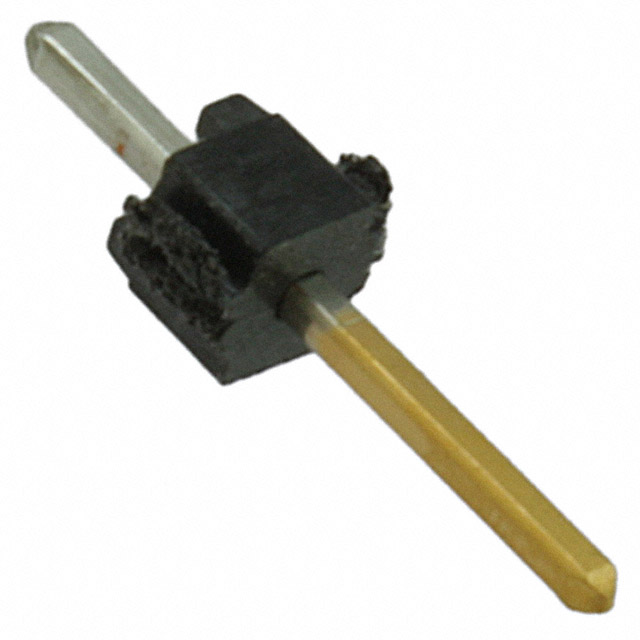

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-146868-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT .100" GOLD
Datasheets:	5-146868-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1926839 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1926839 pcs

Reference Price (In US Dollars)

25000 pcs: $0.018

50000 pcs: $0.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.018

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-146868-1

Part Number	5-146868-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT .100" GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1926839 pcs	Data sheet	5-146868-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	AMPMODU	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	0.440" (11.18mm)	Other Names	5-146868-1-ND 51468681 A105161TR
Operating Temperature	-65°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	25000, Cuttable
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 25000, Cuttable position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	-
