5-104693-6

Agastat Relays / TE Connectivity

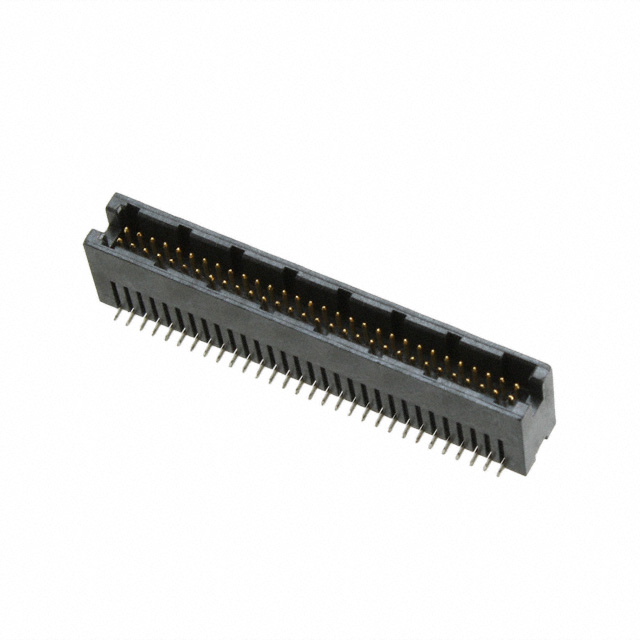

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-104693-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 60POS .050 VERT SMD
Datasheets:	5-104693-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12178 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12178 pcs

Reference Price (In US Dollars)

1 pcs: $3.009

13 pcs: $2.883

104 pcs: $2.382

507 pcs: $2.006

1001 pcs: $1.755

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.009

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-104693-6

Part Number	5-104693-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 60POS .050 VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12178 pcs	Data sheet	5-104693-6.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	AMPMODU 50/50 Grid	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	51046936
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	60
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	9.91mm
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.367" (9.33mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 60 position 0.050" (1.27mm)	Current Rating	0.5A per Contact
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.120" (3.05mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Military, Telecommunications
