5-102826-1

Agastat Relays / TE Connectivity

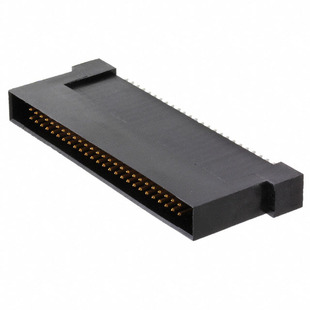

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-102826-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 52POS STR .100 GOLD
Datasheets:	5-102826-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5143 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5143 pcs

Reference Price (In US Dollars)

1 pcs: $7.514

12 pcs: $6.783

108 pcs: $5.89

504 pcs: $5.402

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.514

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-102826-1

Part Number	5-102826-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 52POS STR .100 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5143 pcs	Data sheet	5-102826-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	1.236" (31.39mm)	Other Names	5-102826-1-ND A115217
Operating Temperature	-65°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	52
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	1.200" (30.48mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 52 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.096" (2.43mm)
Contact Length - Mating	0.275" (6.99mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
