Part Number | 447650-3 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN SMA JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 5868 pcs | Data sheet | 447650-3.pdf |
Voltage Rating | 335V | Shield Termination | Crimp |
Series | - | Packaging | Bulk |
Other Names | 4476503 A4009 |
Operating Temperature | - |
Number of Ports | 1 | Mounting Type | Panel Mount |
Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mating Cycles | 500 | Manufacturer Standard Lead Time | 19 Weeks |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Loss | 0.3dB |
Ingress Protection | - | Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
Impedance | 50 Ohm | Housing Color | Silver |
Frequency - Max | 12.4GHz | Features | - |
Fastening Type | Threaded | Dielectric Material | - |

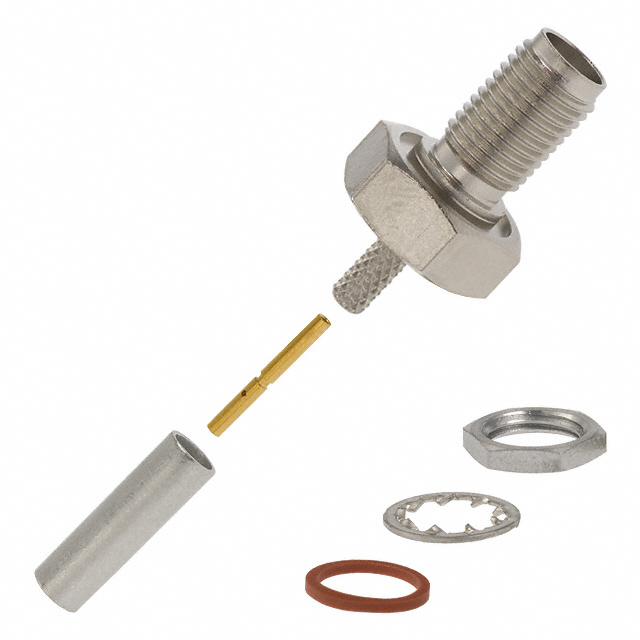

Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Panel Mount Crimp | Contact Termination | Crimp |
Connector Type | Jack, Female Socket | Connector Style | SMA |
Center Contact Plating | - | Center Contact Material | - |
Cable Group | RG-174, 188A, 316 | Body Material | Brass |
Body Finish | Nickel |
