Agastat Relays / TE Connectivity
| Part Number | 413771-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3724 pcs | Data sheet | 413771-1.pdf |
| Voltage Rating | 500V | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | A1811 | Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |

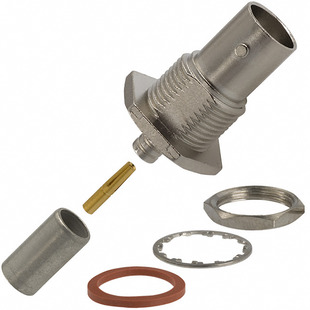

| Dielectric Material | Polymethylpentene (PMP) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-58, 58A, 58B, 58C, Belden 88240 |
| Body Material | Zinc | Body Finish | Nickel |
