4-647630-2

Agastat Relays / TE Connectivity

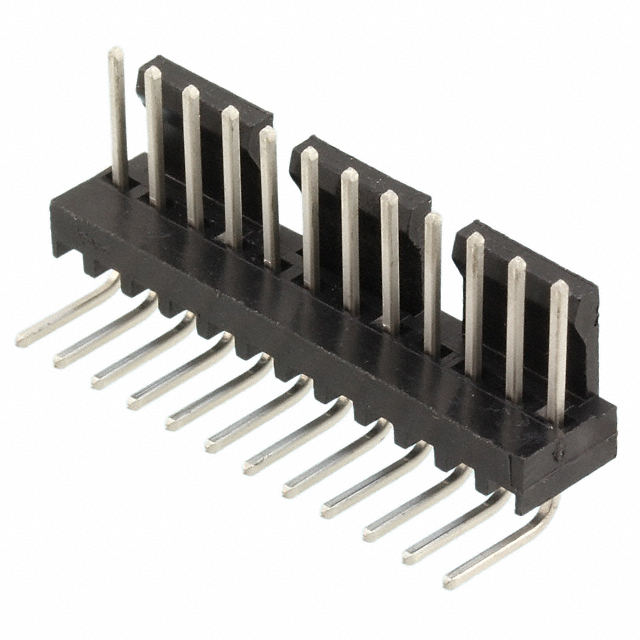

Image may be representation. See specifications for product details.

Product Overview

Part Number:	4-647630-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 12POS R/A TIN .100
Datasheets:	4-647630-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58383 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58383 pcs

Reference Price (In US Dollars)

1 pcs: $0.661

10 pcs: $0.599

100 pcs: $0.513

500 pcs: $0.428

1000 pcs: $0.367

5000 pcs: $0.325

10000 pcs: $0.318

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.661

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 4-647630-2

Part Number	4-647630-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 12POS R/A TIN .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58383 pcs	Data sheet	4-647630-2.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-100	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	4-647630-2-ND A113736
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.250" (6.35mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.140" (3.56mm)	Contact Length - Mating	0.290" (7.37mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose
