4-534998-0

Agastat Relays / TE Connectivity

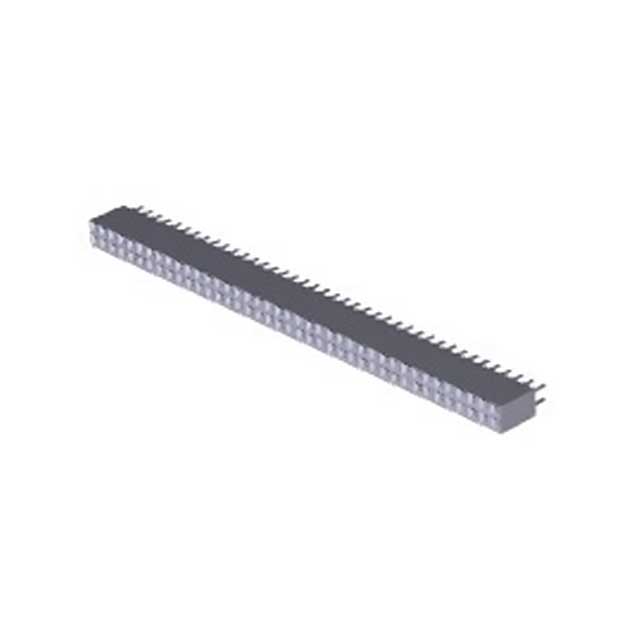

Image may be representation. See specifications for product details.

Product Overview

Part Number:	4-534998-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RCPT 80POS DL VERT .100
Datasheets:	4-534998-0.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6714 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6714 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 4-534998-0

Part Number	4-534998-0	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RCPT 80POS DL VERT .100	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6714 pcs	Data sheet	4-534998-0.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Series	AMPMODU Mod IV
Row Spacing - Mating	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Operating Temperature	-65°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	80	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	-
Mated Stacking Heights	-	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic, Glass Filled	Insulation Height	0.265" (6.73mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	80 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold	Current Rating	2A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.125" (3.18mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	-
