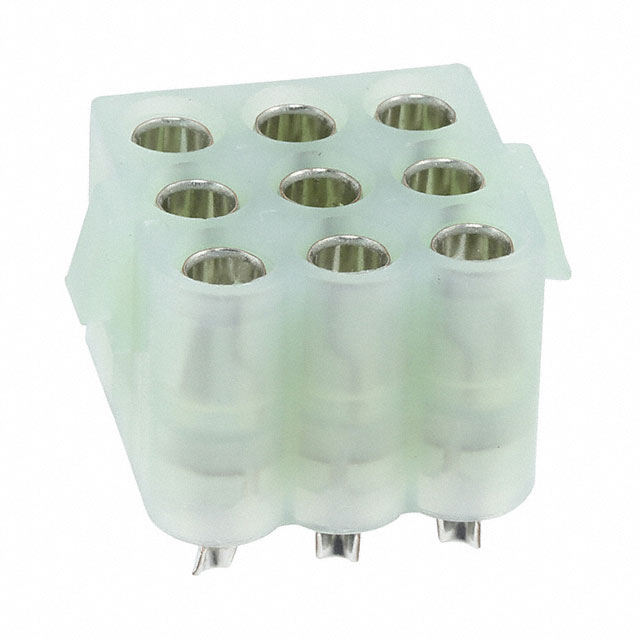

Agastat Relays / TE Connectivity
| Part Number | 365046-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER PIN 9POS VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6965 pcs | Data sheet | 365046-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Series | MATE-N-LOK |
| Row Spacing - Mating | 0.240" (6.10mm) | Pitch - Mating | 0.240" (6.10mm) |
| Packaging | Bulk | Other Names | 365046-1-ND A122445 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-2 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.571" (14.50mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | 9 Position Header Connector 0.138" (3.50mm) Through Hole | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.161" (4.09mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
