Agastat Relays / TE Connectivity

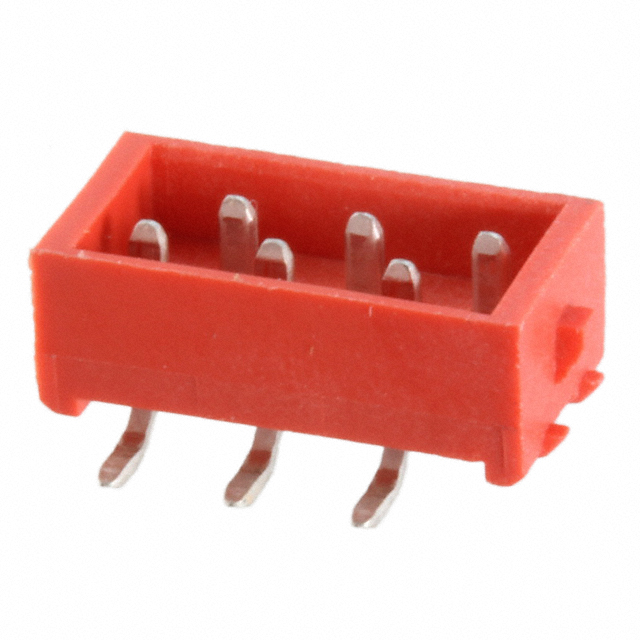

| Part Number | 338728-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 6POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 137603 pcs | Data sheet | 338728-6.pdf |
| Voltage Rating | 230V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Micro-MaTch | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 338728-6-ND A116256TR |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount 6 position 0.100" (2.54mm) |
| Current Rating | 1.5A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
