322777

Agastat Relays / TE Connectivity

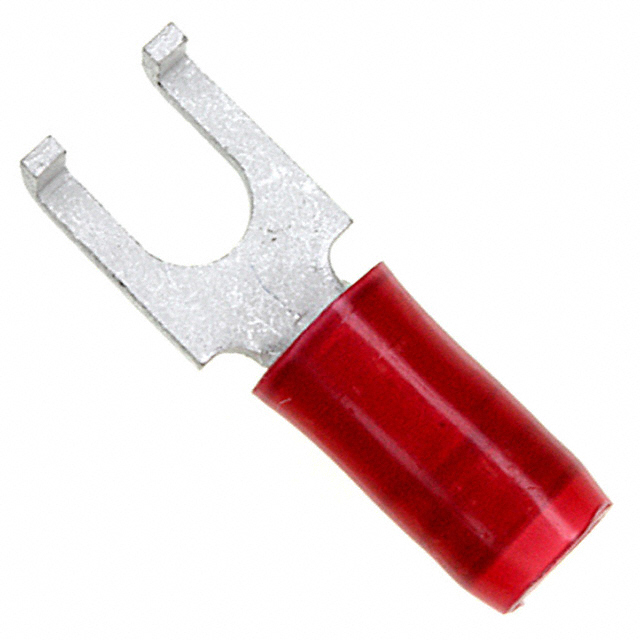

Image may be representation. See specifications for product details.

Product Overview

Part Number:	322777
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN SPADE TERM 16-22AWG #6 RED
Datasheets:	322777.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	176688 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 176688 pcs

Reference Price (In US Dollars)

1 pcs: $0.188

10 pcs: $0.177

25 pcs: $0.16

50 pcs: $0.142

100 pcs: $0.136

250 pcs: $0.124

500 pcs: $0.118

1000 pcs: $0.098

2500 pcs: $0.089

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.188

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 322777

Part Number	322777	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN SPADE TERM 16-22AWG #6 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	176688 pcs	Data sheet	322777.pdf
Wire Gauge	16-22 AWG	Width - Outer Edges	0.250" (6.35mm)
Tongue Inside Opening	0.145" (3.68mm)	Termination	Crimp
Terminal Type	Flanged	Stud/Tab Size	6 Stud
Series	PIDG	Packaging	Bulk
Other Names	322777-ND A27431	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyamide (PA), Nylon
Manufacturer Standard Lead Time	15 Weeks	Length - Termination	0.404" (10.26mm)
Length - Ring Center to Termination	0.203" (5.16mm)	Length - Overall	0.768" (19.51mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Insulation	Insulated	Features	Serrated Termination
Detailed Description	Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG	Contact Material	Copper
Contact Finish	Tin	Color	Red
