3-828590-4

Agastat Relays / TE Connectivity

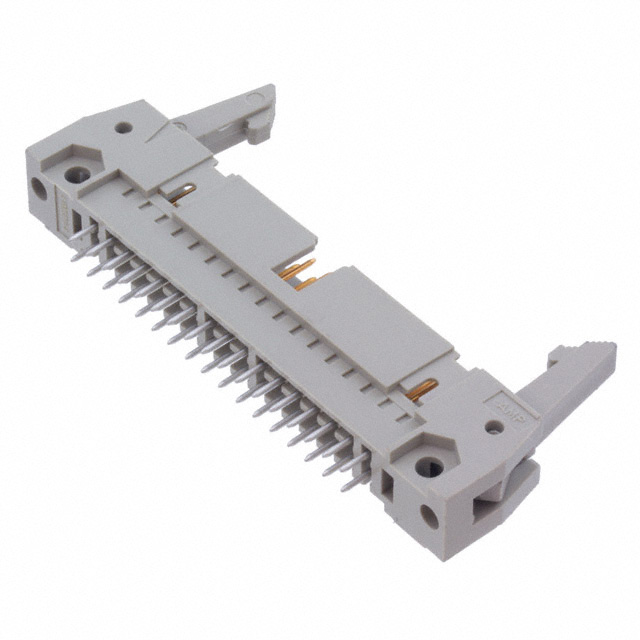

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-828590-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 34POS VERT 30GOLD
Datasheets:	3-828590-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2737 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2737 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-828590-4

Part Number	3-828590-4	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 34POS VERT 30GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2737 pcs	Data sheet	3-828590-4.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.652" (16.56mm)	Other Names	3-828590-4-ND 38285904 A105043
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.346" (8.80mm)	Insulation Color	Gray
Ingress Protection	-	Features	Keying Slot, Mounting Flange
Fastening Type	Latch Lock/Eject Hooks	Detailed Description	Connector Header Through Hole 34 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	0.246" (6.25mm)
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	31.5µin (0.80µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold or Gold-Palladium
Connector Type	Header	Applications	-
