3-647047-5

Agastat Relays / TE Connectivity

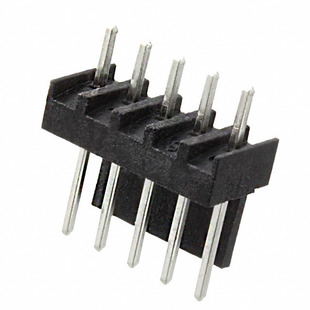

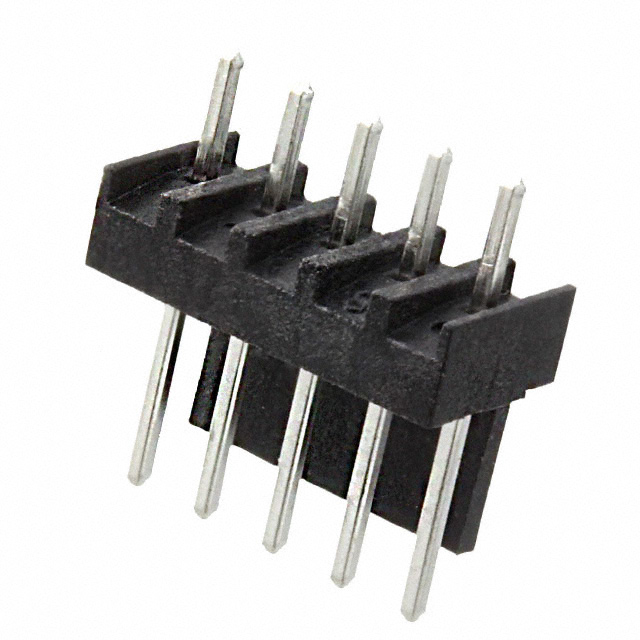

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-647047-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 5POS VERT .100 TIN
Datasheets:	3-647047-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38684 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38684 pcs

Reference Price (In US Dollars)

1 pcs: $0.798

10 pcs: $0.726

100 pcs: $0.622

500 pcs: $0.519

1000 pcs: $0.444

5000 pcs: $0.394

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.798

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-647047-5

Part Number	3-647047-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 5POS VERT .100 TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38684 pcs	Data sheet	3-647047-5.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-100	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.550" (13.97mm)	Other Names	3-647047-5-ND A113581
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6	Insulation Height	0.347" (8.81mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	-
Detailed Description	Connector Header Through Hole 5 position 0.100" (2.54mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.135" (3.43mm)
Contact Length - Mating	0.290" (7.37mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
