3-60803-1

Agastat Relays / TE Connectivity

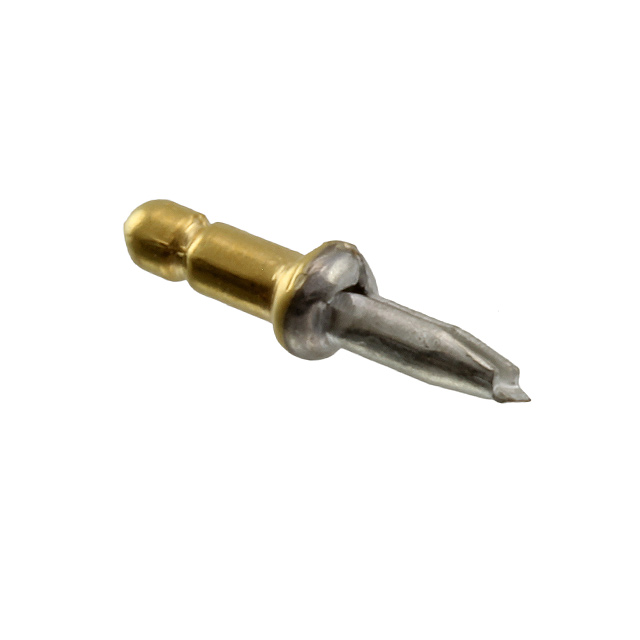

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-60803-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PC PIN CIRC 0.058DIA GOLD
Datasheets:	3-60803-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	183074 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 183074 pcs

Reference Price (In US Dollars)

1000 pcs: $0.21

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.21

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-60803-1

Part Number	3-60803-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PC PIN CIRC 0.058DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	183074 pcs	Data sheet	3-60803-1.pdf
Termination	Press-Fit	Terminal Type	Single Post
Terminal Style	Flanged	Series	-
Pin Size - Below Flange	-	Pin Size - Above Flange	0.058" (1.47mm) Dia
Packaging	Bulk	Other Names	3-60803-1-ND 3608031 A113505
Mounting Type	Through Hole	Mounting Hole Diameter	0.046" ~ 0.050" (1.17mm ~ 1.27mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	12 Weeks	Length - Overall	0.375" (9.53mm)
Length - Below Flange	0.150" (3.81mm)	Length - Above Flange	0.160" (4.06mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.090" (2.29mm)
Detailed Description	Single Post Terminal Connector Through Hole Gold 0.058" (1.47mm) Dia	Contact Material	Phosphor Bronze
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	0.062" ~ 0.093" (1.57mm ~ 2.36mm)
