3-292173-3

Agastat Relays / TE Connectivity

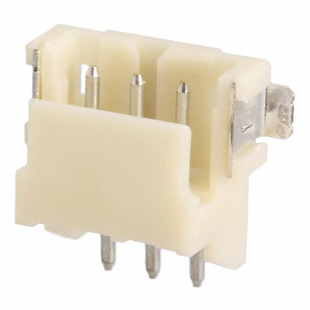

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-292173-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 3POS SMD R/A TIN NAT
Datasheets:	3-292173-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	112267 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 112267 pcs

Reference Price (In US Dollars)

1 pcs: $0.293

10 pcs: $0.256

100 pcs: $0.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.293

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-292173-3

Part Number	3-292173-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 3POS SMD R/A TIN NAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	112267 pcs	Data sheet	3-292173-3.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CT	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	A111147CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled	Insulation Height	0.228" (5.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Detent Lock
Detailed Description	Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	0.165" (4.20mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
