3-176976-6

Agastat Relays / TE Connectivity

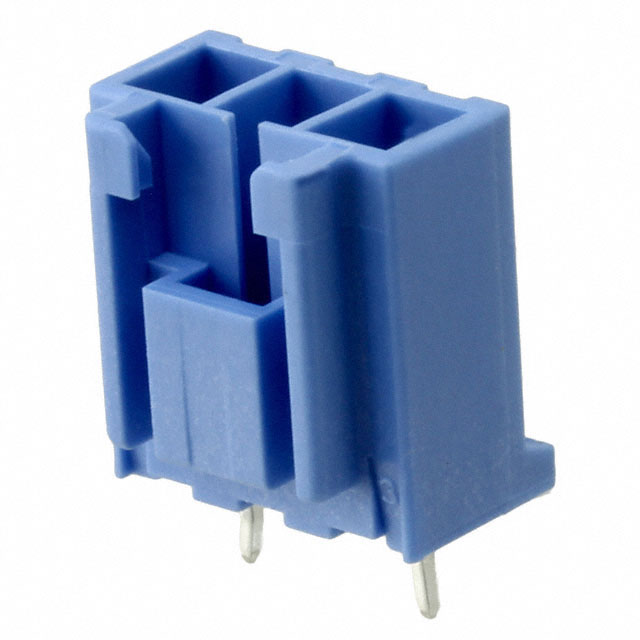

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-176976-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADE T/H TIN
Datasheets:	3-176976-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	198420 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 198420 pcs

Reference Price (In US Dollars)

1 pcs: $0.159

10 pcs: $0.15

100 pcs: $0.105

500 pcs: $0.09

1000 pcs: $0.075

5000 pcs: $0.064

10000 pcs: $0.06

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.159

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-176976-6

Part Number	3-176976-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADE T/H TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	198420 pcs	Data sheet	3-176976-6.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Universal Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A119556
Operating Temperature	-30°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	2	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height	0.551" (14.00mm)	Insulation Color	Blue
Ingress Protection	-	Features	-
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)
Current Rating	Varies by Wire Gauge	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Brass
Contact Length - Post	0.150" (3.81mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose
