3-1318983-6

Agastat Relays / TE Connectivity

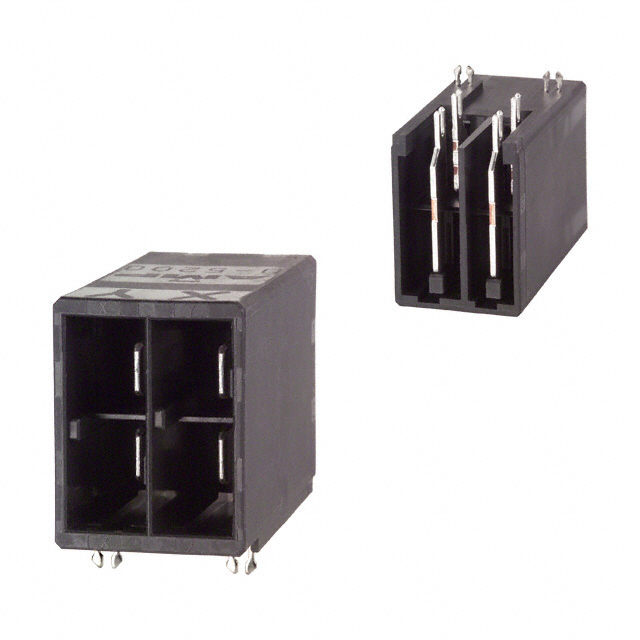

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-1318983-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 4POS R/A KEY-XY SLV
Datasheets:	1.3-1318983-6.pdf 2.3-1318983-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6576 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6576 pcs

Reference Price (In US Dollars)

1 pcs: $4.512

10 pcs: $4.102

100 pcs: $3.487

500 pcs: $2.974

1000 pcs: $2.728

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.512

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-1318983-6

Part Number	3-1318983-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 4POS R/A KEY-XY SLV	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6576 pcs	Data sheet	1.3-1318983-6.pdf 2.3-1318983-6.pdf
Voltage Rating	630V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-5200	Row Spacing - Mating	0.400" (10.16mm)
Pitch - Mating	0.400" (10.16mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A29821
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic, Polyester, Glass Filled
Insulation Height	1.215" (30.86mm)	Insulation Color	Black
Ingress Protection	IP20	Features	Board Lock
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.400" (10.16mm)
Current Rating	45A	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Copper Alloy
Contact Length - Post	0.150" (3.81mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Silver
Connector Type	Header	Applications	General Purpose, Industrial
