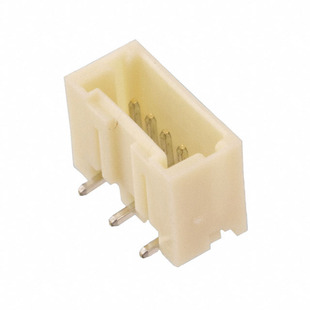

Agastat Relays / TE Connectivity
| Part Number | 292371-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SINGLE ROW POST HEADER ASSY SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 216207 pcs | Data sheet | |
| Voltage Rating | 125VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | CT | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | A119740TR |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.272" (6.91mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 5 position 0.059" (1.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
