292132-7

Agastat Relays / TE Connectivity

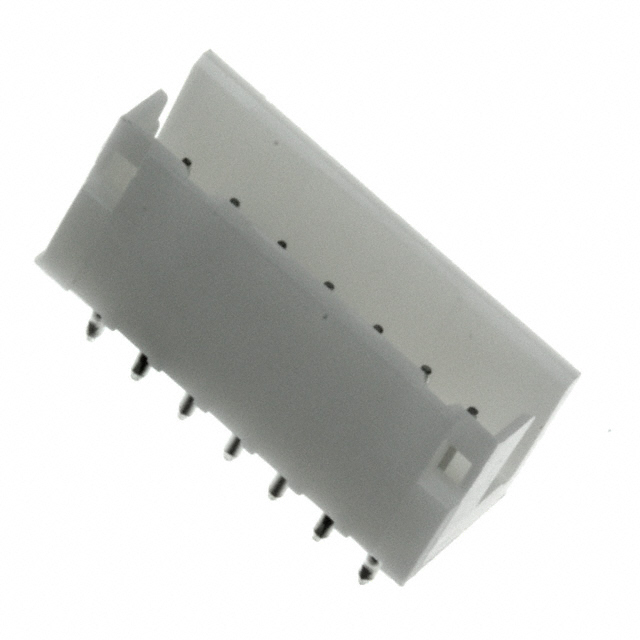

Image may be representation. See specifications for product details.

Product Overview

Part Number:	292132-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 7POS VERT PCB TIN
Datasheets:	292132-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	140825 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 140825 pcs

Reference Price (In US Dollars)

1 pcs: $0.264

10 pcs: $0.233

100 pcs: $0.201

500 pcs: $0.165

1000 pcs: $0.146

5000 pcs: $0.128

10000 pcs: $0.122

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 292132-7

Part Number	292132-7	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 7POS VERT PCB TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	140825 pcs	Data sheet	292132-7.pdf
Voltage Rating	125VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CT	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.358" (9.09mm)	Other Names	2921327 A98782
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	7
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.268" (6.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 7 position 0.079" (2.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.165" (4.20mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
