Agastat Relays / TE Connectivity
| Part Number | 284391-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

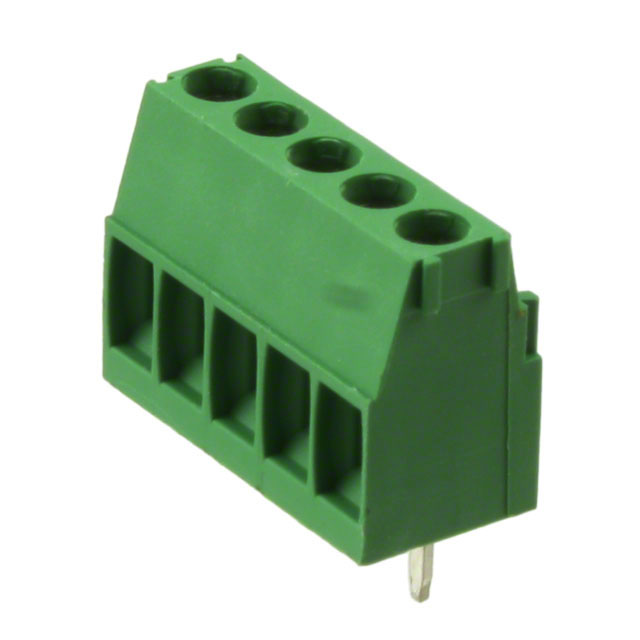

| Description | TERM BLOCK 5POS SIDE ENT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34485 pcs | Data sheet | 1.284391-5.pdf2.284391-5.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 14-30 AWG |
| Voltage | 300V | Torque - Screw | 0.25 Nm (2.2 Lb-In) |
| Series | Buchanan | Screw Thread | M3 |
| Screw Material - Plating | Brass - Nickel Plated | Positions Per Level | 5 |
| Pitch | 0.138" (3.50mm) | Packaging | Tray |
| Other Names | 284391-5-ND 2843915 A98372 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Features | Interlocking (Side) |
| Detailed Description | 5 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole | Current | 12A |
| Contact Material - Plating | Brass - Tin Plated | Color | Green |
| Clamp Material - Plating | Brass - Nickel Plated |
