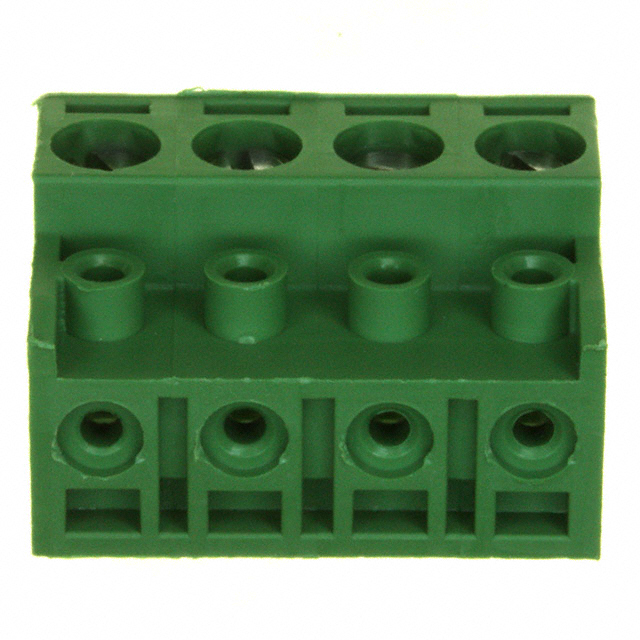

Agastat Relays / TE Connectivity
| Part Number | 282830-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 4POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29648 pcs | Data sheet | 1.282830-4.pdf2.282830-4.pdf |
| Wire Strip Length | 6-7.5mm | Wire Gauge or Range - mm² | 0.05-2mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - UL | 300V |
| Type | Plug for Unshrouded Header | Torque - Screw | 0.68 Nm (6 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | Buchanan |
| Screw Size | M3 | Positions Per Level | 4 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 2828304 A98072 |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.453" (11.50mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Side Stacking | Detailed Description | 4 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 12A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Green |
