Agastat Relays / TE Connectivity

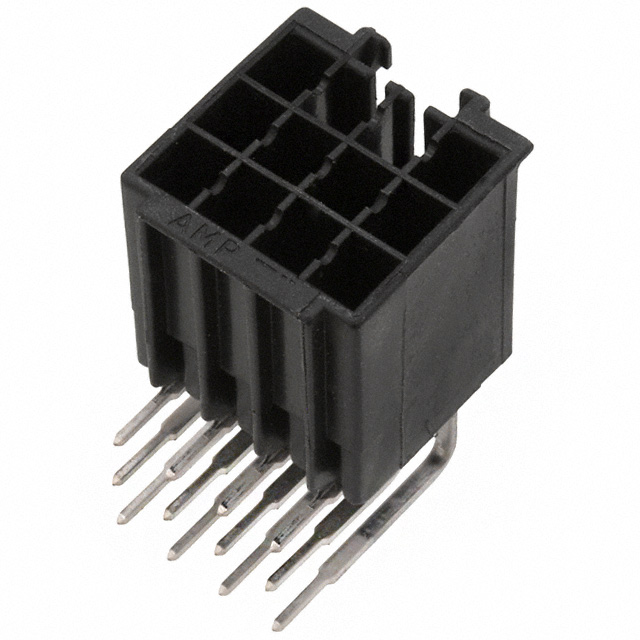

| Part Number | 282357-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 12POS R/A .156 PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3366 pcs | Data sheet | 282357-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Universal Power | Row Spacing - Mating | 0.156" (3.96mm) |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 282357-1-ND 2823571 A107228 |
| Operating Temperature | -30°C ~ 105°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | - | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.156" (3.96mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | - |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
