280523-1

Agastat Relays / TE Connectivity

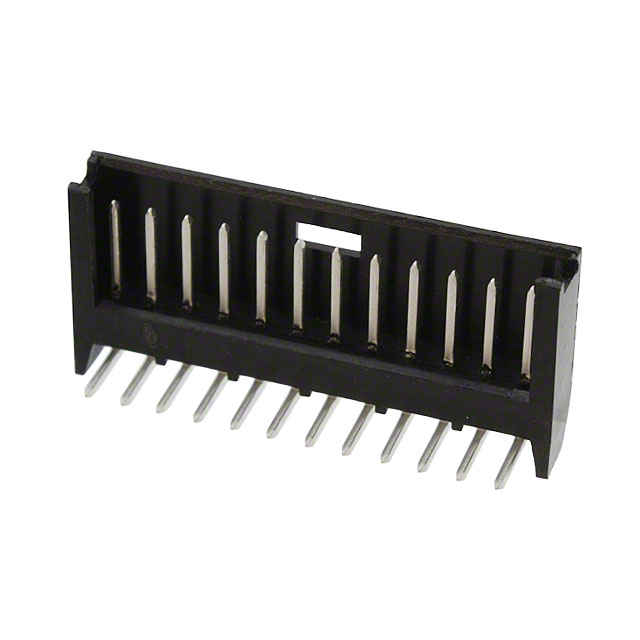

Image may be representation. See specifications for product details.

Product Overview

Part Number:	280523-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 12POS R/A .100 TIN
Datasheets:	280523-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74402 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74402 pcs

Reference Price (In US Dollars)

1 pcs: $0.495

10 pcs: $0.45

100 pcs: $0.386

500 pcs: $0.322

1000 pcs: $0.276

5000 pcs: $0.244

10000 pcs: $0.239

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.495

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 280523-1

Part Number	280523-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 12POS R/A .100 TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74402 pcs	Data sheet	280523-1.pdf
Voltage Rating	40V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 3 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	280523-1-ND 2805231 A106419
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	33 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.197" (5.00mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.260" (6.60mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
