280509-2

Agastat Relays / TE Connectivity

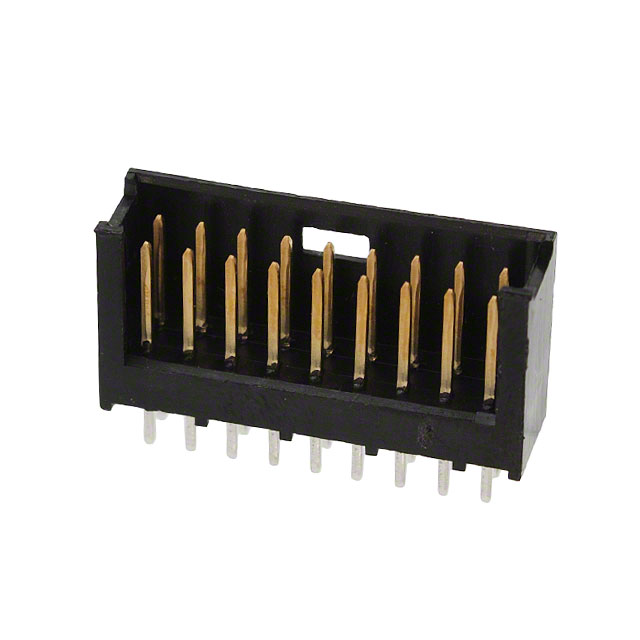

Image may be representation. See specifications for product details.

Product Overview

Part Number:	280509-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 18POS VERT GOLD .100
Datasheets:	280509-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25217 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25217 pcs

Reference Price (In US Dollars)

1 pcs: $1.272

10 pcs: $1.221

100 pcs: $1.017

500 pcs: $0.865

1000 pcs: $0.763

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.272

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 280509-2

Part Number	280509-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 18POS VERT GOLD .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25217 pcs	Data sheet	280509-2.pdf
Voltage Rating	40V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 3 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.563" (14.30mm)	Other Names	280509-2-ND 2805092 A106413
Operating Temperature	-40°C ~ 80°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	30 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.496" (12.60mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 18 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.260" (6.60mm)	Contact Finish Thickness - Post	98.4µin (2.50µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
