280390-2

Agastat Relays / TE Connectivity

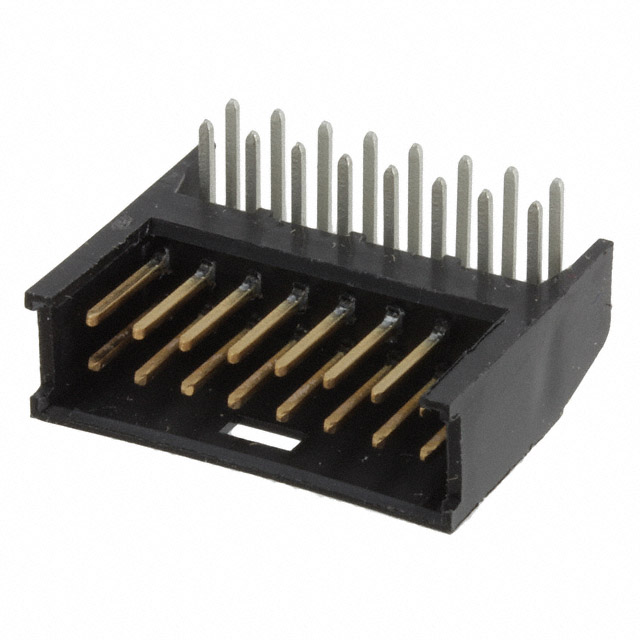

Image may be representation. See specifications for product details.

Product Overview

Part Number:	280390-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 16POS DUAL R/A GOLD
Datasheets:	280390-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31367 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31367 pcs

Reference Price (In US Dollars)

1 pcs: $1.225

10 pcs: $1.175

100 pcs: $0.979

500 pcs: $0.832

1000 pcs: $0.71

5000 pcs: $0.636

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.225

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 280390-2

Part Number	280390-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 16POS DUAL R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31367 pcs	Data sheet	280390-2.pdf
Voltage Rating	40V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 3 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	280390-2-ND 2803902 A106684
Operating Temperature	-40°C ~ 80°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	33 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.276" (7.00mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.260" (6.60mm)	Contact Finish Thickness - Post	98.4µin (2.50µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
