Agastat Relays / TE Connectivity

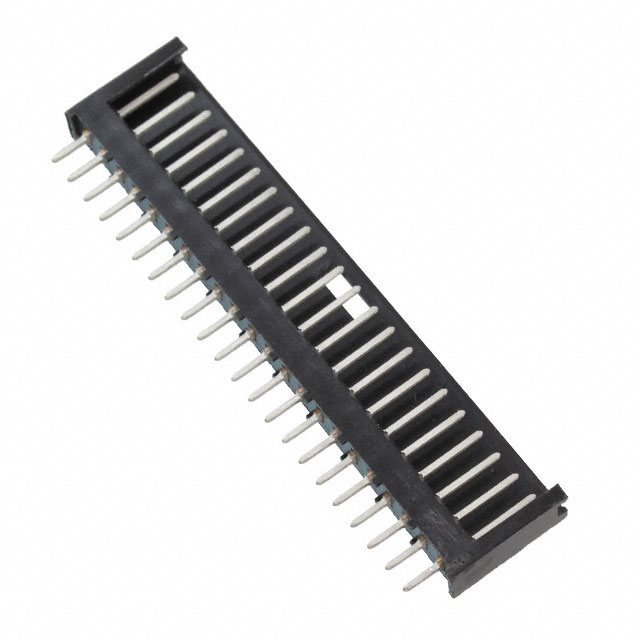

| Part Number | 280376-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 22P AMPMODU II SHRD HDR ST TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46173 pcs | Data sheet | 280376-1.pdf |
| Voltage Rating | 40V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 3 Wall |
| Series | AMPMODU Mod II | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.563" (14.30mm) | Other Names | A119537 |
| Operating Temperature | -40°C ~ 80°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.496" (12.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 22 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
