2305909-2

Agastat Relays / TE Connectivity

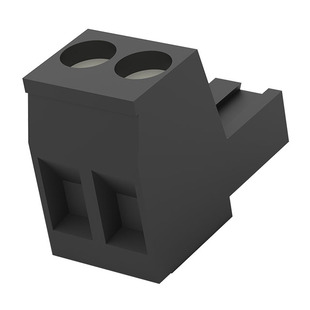

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2305909-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SMT TB PARALLEL PLUG, 5.0MM, 2 P
Datasheets:	1.2305909-2.pdf 2.2305909-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58206 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58206 pcs

Reference Price (In US Dollars)

1 pcs: $0.60

10 pcs: $0.422

25 pcs: $0.394

50 pcs: $0.357

100 pcs: $0.356

250 pcs: $0.30

500 pcs: $0.284

1000 pcs: $0.253

5000 pcs: $0.205

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.60

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2305909-2

Part Number	2305909-2	Manufacturer	Agastat Relays / TE Connectivity
Description	SMT TB PARALLEL PLUG, 5.0MM, 2 P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58206 pcs	Data sheet	1.2305909-2.pdf 2.2305909-2.pdf
Wire Strip Length	7mm	Wire Gauge or Range - mm²	-
Wire Gauge or Range - AWG	12-26 AWG	Voltage - UL	300V
Type	Plug, Female Sockets	Torque - Screw	0.5 Nm (4.4 Lb-In)
Termination Style	Screw	Series	WireMate, Buchanan
Screw Size	-	Positions Per Level	2
Plug Wire Entry	180°	Pitch	0.197" (5.00mm)
Packaging	Bulk	Other Names	A126307
Operating Temperature	-	Number of Positions	2
Number of Levels	1	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Height	0.591" (15.00mm)	Ingress Protection	-
Housing Material	Thermoplastic	Header Orientation	-
Features	Retention Latches (Non-Wire Side)	Detailed Description	2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Current - UL	15A	Current - IEC	-
Contact Tail Length	-	Contact Mating Finish	Nickel
Contact Material	Copper Alloy	Color	Black
