Agastat Relays / TE Connectivity

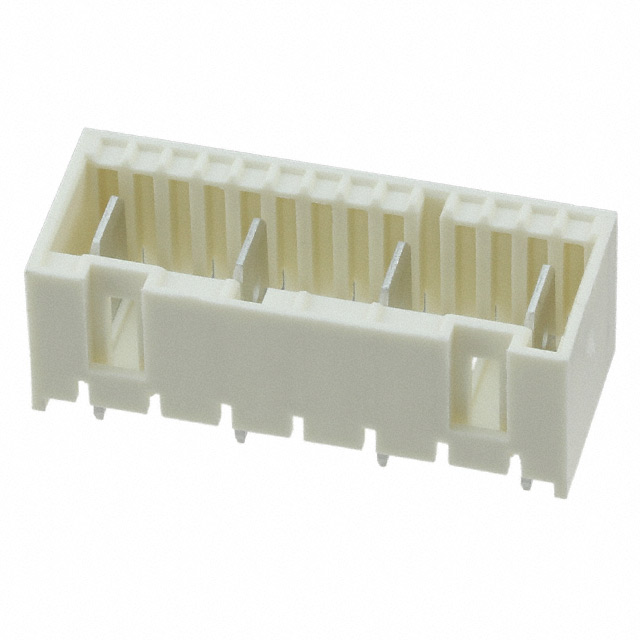

| Part Number | 2232511-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 7P, RAST 5 TAB HEADER, THV | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 65301 pcs | Data sheet | 2232511-7.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | 4 |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide, Glow Wire Compliant | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 7 position 0.197" (5.00mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | - | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
