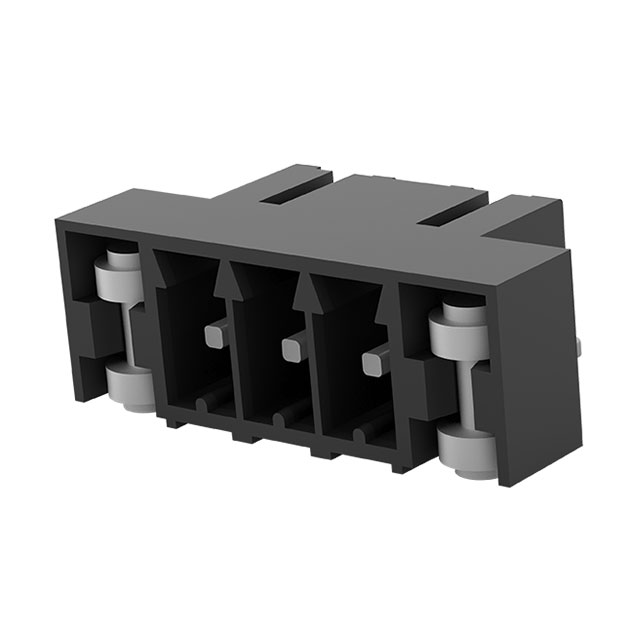

Agastat Relays / TE Connectivity
| Part Number | 2213933-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SMT TB R/A HEADER, RET, 3.5MM, 3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57628 pcs | Data sheet | 1.2213933-3.pdf2.2213933-3.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | WireMate, Buchanan |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | A126298 A126298-ND A126298TR |
| Operating Temperature | - | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Thermoplastic | Header Orientation | 90°, Right Angle |
| Features | Mounting Flange | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Surface Mount |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
