Agastat Relays / TE Connectivity
| Part Number | 2213867-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

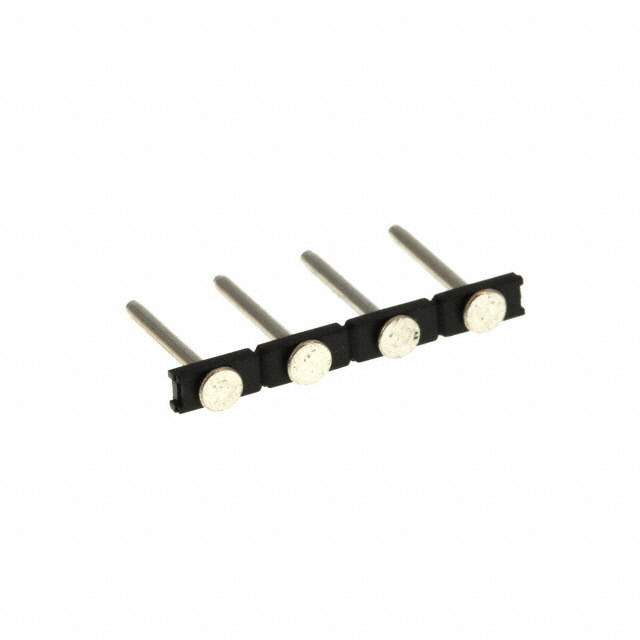

| Description | 5.00MM SCREW TB PIN STRIP, 4 POS | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 121342 pcs | Data sheet | 2213867-4.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins | Torque - Screw | - |
| Termination Style | Solder | Series | - |
| Screw Size | - | Positions Per Level | 4 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Cut Tape (CT) | Other Names | A125752CT |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Insulation Height | 0.039" (1.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Header Orientation | Vertical |
| Features | - | Detailed Description | 4 Position Terminal Block Header, Male Pins 0.197" (5.00mm) Vertical Surface Mount |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | - |
