Agastat Relays / TE Connectivity

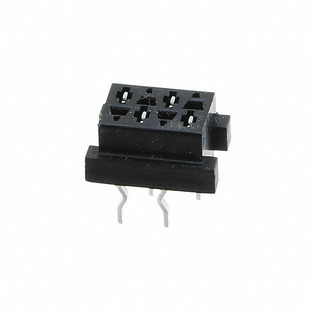

| Part Number | 2178710-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN 4P FOB THT VERT RCPT TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 664759 pcs | Data sheet | 2178710-4.pdf |
| Voltage Rating | 100VDC | Termination | Kinked Pin, Solder |
| Style | Board to Board or Cable | Series | Micro-MaTch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | A120914TR |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.157" (4.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin | Current Rating | - |
| Contact Type | Forked | Contact Shape | - |
| Contact Material | Brass | Contact Length - Post | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | General Purpose, Telecommunications |
