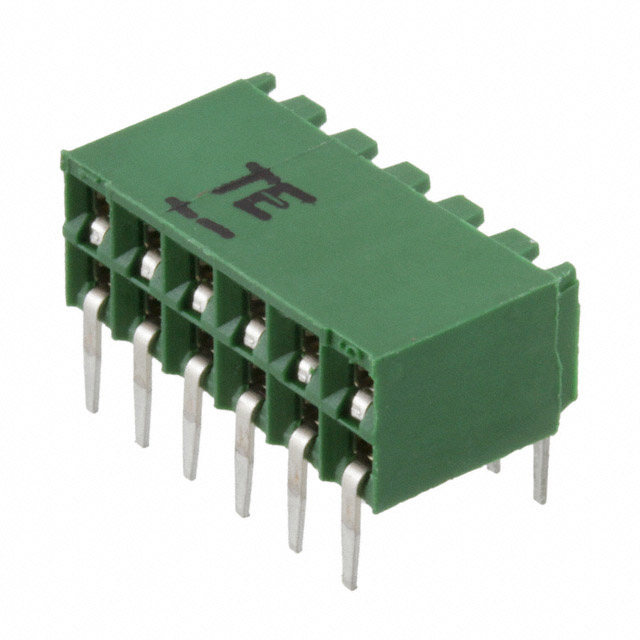

Agastat Relays / TE Connectivity
| Part Number | 216604-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HV-190 R/A DUAL 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27392 pcs | Data sheet | 216604-6.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | AMPMODU HV 190 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 216604-6-ND 2166046 A107219 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 28 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.228" (5.80mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 12 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
