215447-5

Agastat Relays / TE Connectivity

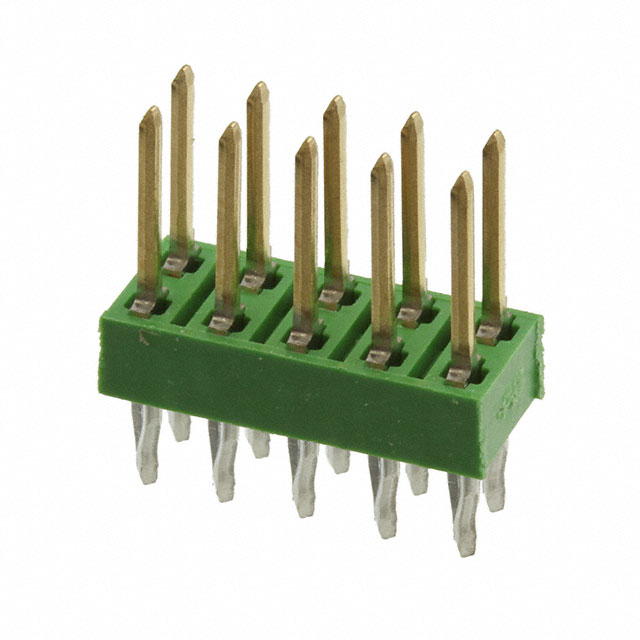

Image may be representation. See specifications for product details.

Product Overview

Part Number:	215447-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 10POS DL VERT GOLD
Datasheets:	215447-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55361 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55361 pcs

Reference Price (In US Dollars)

2400 pcs: $0.705

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.705

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 215447-5

Part Number	215447-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 10POS DL VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55361 pcs	Data sheet	215447-5.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.535" (13.59mm)	Other Names	215447-5-ND A121793
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	27 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.114" (2.90mm)
Insulation Color	Green	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 10 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.157" (4.00mm)
Contact Length - Mating	0.264" (6.70mm)	Contact Finish Thickness - Post	50.0µin (1.27µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
