Agastat Relays / TE Connectivity

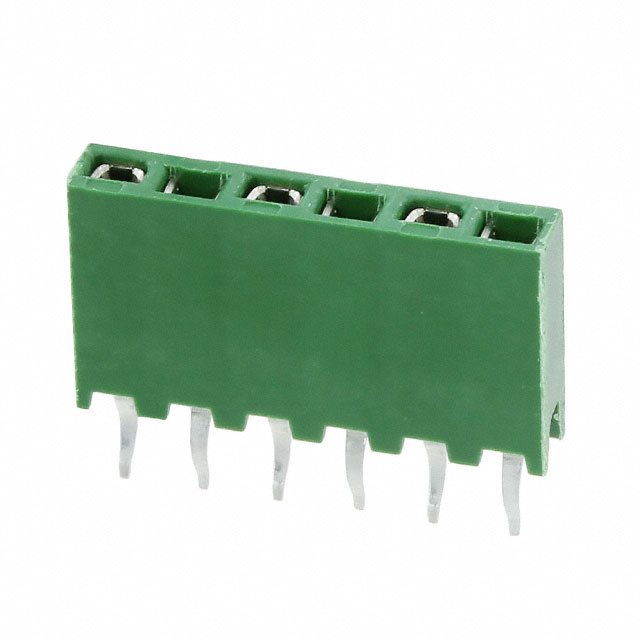

| Part Number | 215299-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 6POS VERT T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 128630 pcs | Data sheet | 215299-6.pdf |
| Voltage Rating | - | Termination | Kinked Pin, Solder |
| Style | Board to Board | Series | AMPMODU HV-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 215299-6-ND A121761 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
