213768-1

Agastat Relays / TE Connectivity

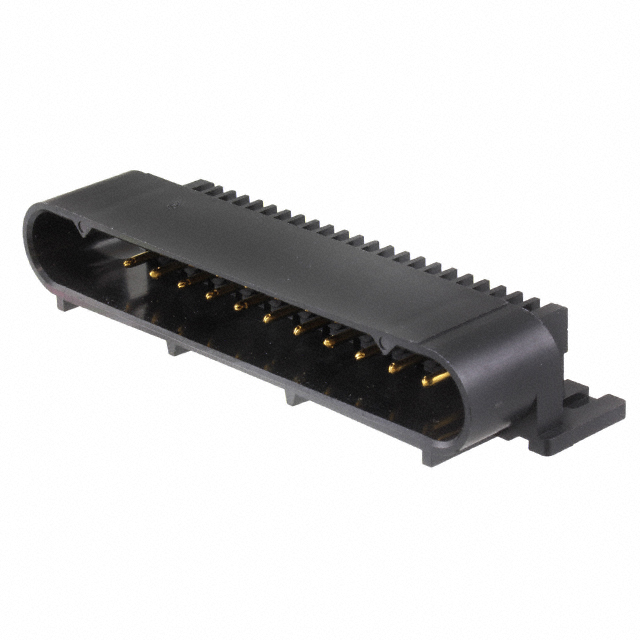

Image may be representation. See specifications for product details.

Product Overview

Part Number:	213768-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 23POS R/A GOLD
Datasheets:	213768-1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	2655 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2655 pcs

Reference Price (In US Dollars)

18 pcs: $14.796

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.796

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 213768-1

Part Number	213768-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 23POS R/A GOLD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2655 pcs	Data sheet	213768-1.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Metrimate	Row Spacing - Mating	0.200" (5.08mm)
Pitch - Mating	0.250" (6.35mm)	Packaging	Tube
Overall Contact Length	-	Other Names	Q1136439
Operating Temperature	-55°C ~ 130°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	23
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	25 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.690" (17.53mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 23 position 0.250" (6.35mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.100" (2.54mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
