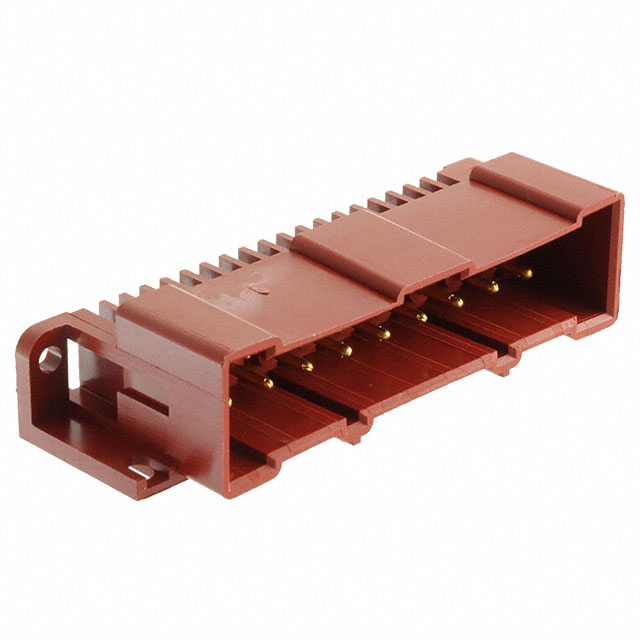

Agastat Relays / TE Connectivity
| Part Number | 212630-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 19POS .200 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4501 pcs | Data sheet | 212630-6.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Metrimate | Row Spacing - Mating | 0.200" (5.08mm) |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Tube |
| Overall Contact Length | - | Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions Loaded | 17 |
| Number of Positions | 19 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.750" (19.05mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 19 position 0.250" (6.35mm) | Current Rating | 7.5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial |
