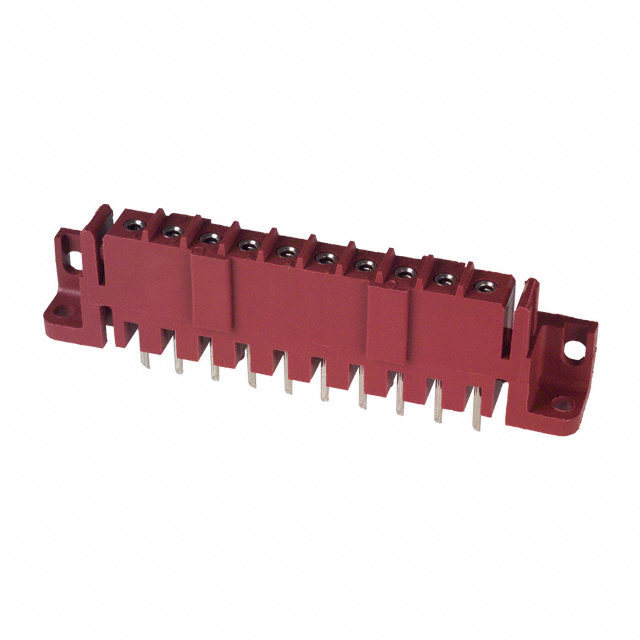

Agastat Relays / TE Connectivity
| Part Number | 207613-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER SOCKT 10POS VERT TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8861 pcs | Data sheet | 207613-1.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Cable/Wire | Series | Metrimate |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Tray | Other Names | A30060 |
| Operating Temperature | -55°C ~ 130°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.768" (19.50mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | 10 Position Header Connector 0.197" (5.00mm) Through Hole Tin-Lead | Current Rating | 7.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.186" (4.72mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
