Agastat Relays / TE Connectivity

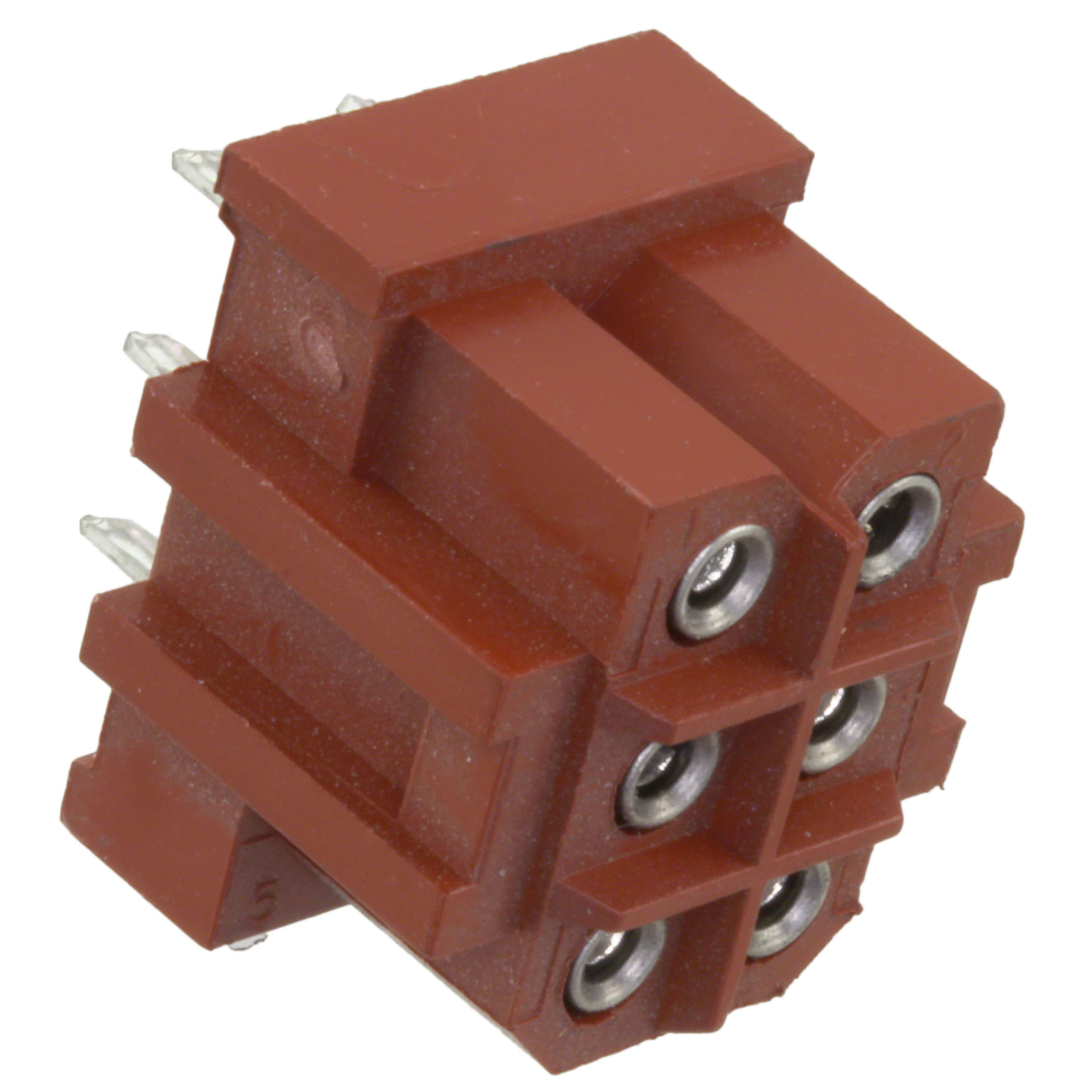

| Part Number | 207524-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR SCKT 6POS METRIMATE TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6336 pcs | Data sheet | 207524-2.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Cable/Wire | Series | Metrimate |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.565" (14.35mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | 6 Position Header Connector 0.197" (5.00mm) Through Hole Tin-Lead | Current Rating | 7.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.181" (4.60mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
