Agastat Relays / TE Connectivity

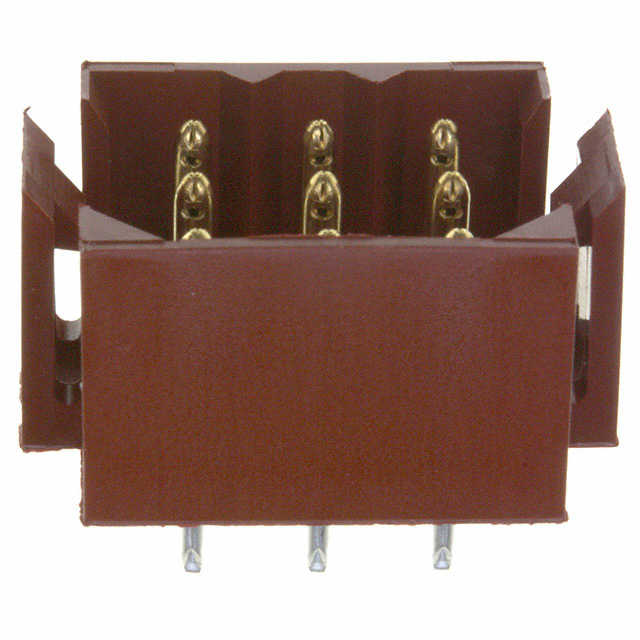

| Part Number | 207441-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR PIN 9POS METRIMATE AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2716 pcs | Data sheet | 207441-4.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Metrimate | Row Spacing - Mating | 0.197" (5.00mm) |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Tray |
| Overall Contact Length | - | Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.464" (11.79mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | - | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole 9 position 0.197" (5.00mm) | Current Rating | 7.5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.181" (4.60mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial |
