Agastat Relays / TE Connectivity
| Part Number | 2029150-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

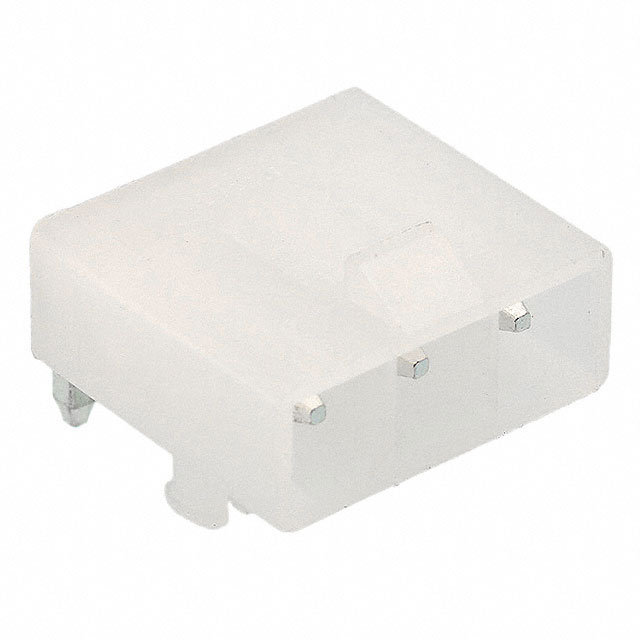

| Description | CONN HEADER 3POS R/A W/PEGS T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 255922 pcs | Data sheet | 2029150-3.pdf |
| Voltage Rating | 600VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | VAL-U-LOK | Row Spacing - Mating | - |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 2029150-3-ND A112984 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-2 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | - | Insulation Color | - |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.165" (4.20mm) |
| Current Rating | 9A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
