2029054-4

Agastat Relays / TE Connectivity

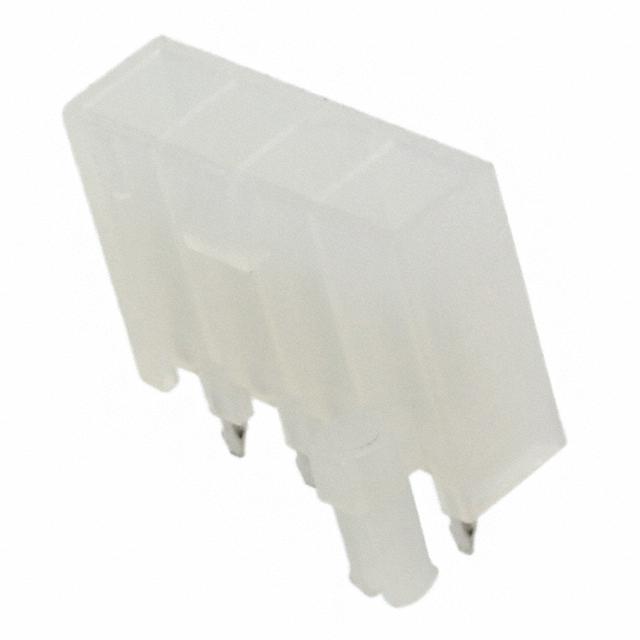

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2029054-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PLUG 4POS VERT W/DRAIN HOLE
Datasheets:	2029054-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	123936 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 123936 pcs

Reference Price (In US Dollars)

1 pcs: $0.267

10 pcs: $0.249

100 pcs: $0.191

500 pcs: $0.166

1000 pcs: $0.137

5000 pcs: $0.12

10000 pcs: $0.112

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.267

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2029054-4

Part Number	2029054-4	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PLUG 4POS VERT W/DRAIN HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	123936 pcs	Data sheet	2029054-4.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	VAL-U-LOK	Row Spacing - Mating	-
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	2029054-4-ND A112979
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.504" (12.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 4 position 0.165" (4.20mm)	Current Rating	9A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass Alloy	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	80.0µin (2.03µm)
Contact Finish Thickness - Mating	80.0µin (2.03µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
