2-966658-2

Agastat Relays / TE Connectivity

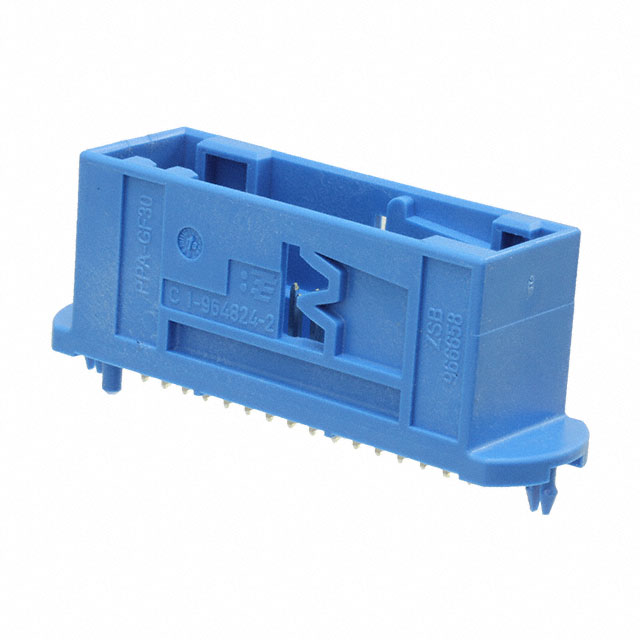

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-966658-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	PIN HEADER, ASSY 2X16POS.
Datasheets:	2-966658-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32208 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32208 pcs

Reference Price (In US Dollars)

1 pcs: $0.936

10 pcs: $0.849

100 pcs: $0.727

500 pcs: $0.606

1000 pcs: $0.52

5000 pcs: $0.461

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.936

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-966658-2

Part Number	2-966658-2	Manufacturer	Agastat Relays / TE Connectivity
Description	PIN HEADER, ASSY 2X16POS.	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32208 pcs	Data sheet	2-966658-2.pdf
Voltage Rating	12V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.520" (13.21mm)	Other Names	2-966658-2-ND A128694
Operating Temperature	-40°C ~ 110°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	32
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphthalamide (PPA), Glass Filled	Insulation Height	0.795" (20.20mm)
Insulation Color	Blue	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 32 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.098" (2.50mm)
Contact Length - Mating	0.268" (6.80mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	78.7µin (2.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
