2-84953-5

Agastat Relays / TE Connectivity

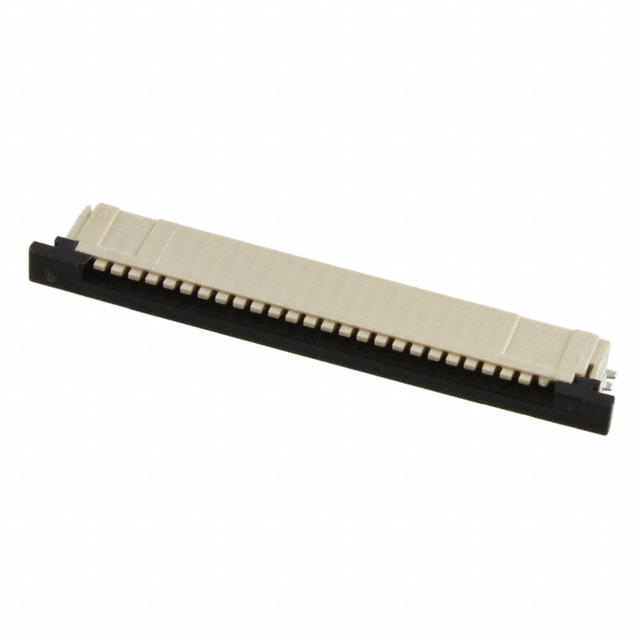

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-84953-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN FPC TOP 25POS 1.00MM R/A
Datasheets:	2-84953-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	77647 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 77647 pcs

Reference Price (In US Dollars)

1200 pcs: $0.431

2400 pcs: $0.403

6000 pcs: $0.383

8400 pcs: $0.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.431

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-84953-5

Part Number	2-84953-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN FPC TOP 25POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77647 pcs	Data sheet	2-84953-5.pdf
Voltage Rating	200V	Termination	Solder
Series	-	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	2-84953-5-ND 2849535 A101410TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	25
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	15 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Natural	Height Above Board	0.101" (2.56mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	25 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	78.7µin (2.00µm)	Contact Finish	Tin
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	Black
